TIC - Laydown Concrete Column Skip
Our most popular concrete skip. The TIC is a robust and extremely versatile rollover skip. Designed to be laid horizontally to be filled and back to vertical for pouring.Product details
The column skip is designed to enable concrete to be poured into narrow

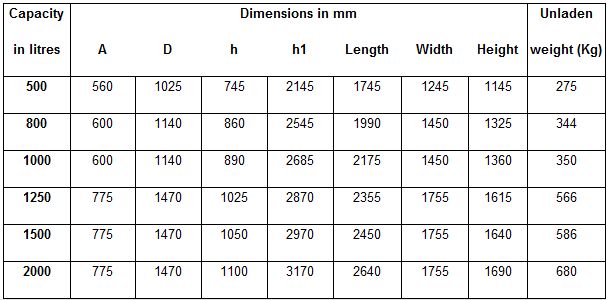

shuttering or columns. Standard sizes from 350 litres to 3,500 litres.
USE: The column skip is supplied with the option of a bale arm or lifting
rings:
- When
filling, the skip is laid on the ground where it is low enough to be
filled from a concrete lorry
- When
pouring the skip is lifted vertically into position
- Gate
operation is by means of a nylon rope attached to a spring return lever
for the TI gate
FEATURES:
- TI Gate: Lever operated gate mechanism for upright and laydown concrete skips with an anti-leakage dismountable cone.
- Bale arm for ease of use
- Heavy
duty construction
- Delivered
with a 3m long hose, 200mm diameter as standard.
- Forklift
pockets for easy transportation around site
- Skips
with capacity of 1000L and above are also fitted with an auxiliary gate
closing rope for ease of gate closure.
OPTIONS:
- Lifting rings (PF) instead
of bale arm for reduced weight and increased safety
- Radio
remote operated gate
- Wheel
operated geared gate
- Alternative
hose diameter / lengths
- Offset chute discharge version (TIC D) allowing concrete to be poured against walls
